HF Market Microstructure Signal Platform

Live App: high-frequency-microstructure-sig.vercel.app · GitHub: github.com/rcodeborg2311/high_frequency_microstructure_SIG

Overview

A research-grade implementation of the core market microstructure toolkit used in quantitative finance. Connects directly to Coinbase’s BTC-USD Level 2 order book feed and computes four real-time microstructure signals derived from academic literature, while simultaneously solving and displaying the optimal market-making quoting policy from a Hamilton-Jacobi-Bellman PDE. Everything from the signal math to the WebSocket streaming to the React dashboard was built from scratch with direct reference to the original academic papers.

Technical Highlights

• Order Flow Imbalance (OFI): Implemented Cont, Kukanov & Stoikov (2014) per-level OFI with O(1) incremental server-side computation using running deque sums. Normalized OFI ∈ [−1, +1] via rolling signed-volume ratio. Includes OLS price impact regression (ΔP = α + β·ŌFIP) with R², β, and p-value output. Validated with IC > 0.01, p < 0.01 against synthetic data where OFI → price causality is hardwired.

• VPIN Toxicity Detection: Implemented Easley, López de Prado & O’Hara (2012) volume-synchronized PIN using bulk volume classification (V_buy = V·Φ(ΔP/σ_ΔP)) across 20 trailing volume buckets. VPIN > 0.7 triggers adverse selection alerts. Demonstrated predictive power: Easley et al. recorded VPIN = 0.93 before the May 6, 2010 Flash Crash.

• Kyle’s Lambda: Implemented the rolling O(1) OLS estimator λ̂ = Σ(q·ΔP)/Σ(q²) from Kyle (1985), using cumulative sum deques to avoid per-tick array allocation. Intraday U-shape binning method surfaces open/close liquidity asymmetry.

• Hawkes Process (MLE + Simulation): Fit self-exciting arrival intensity λ(t) = μ + α·Σexp(−β(t−tᵢ)) via L-BFGS-B on the O(N) recursive log-likelihood (Bacry et al. 2015). Ogata thinning simulation generates exact sample paths. KS test on compensated residuals validates goodness-of-fit. Stationarity enforced via branching ratio penalty α/β < 1.

• HJB Optimal Market-Making PDE: Solved the Avellaneda-Stoikov (2008) / Cartea-Jaimungal-Penalva (2015) Hamilton-Jacobi-Bellman PDE for optimal bid/ask spreads via backward Euler on an 80-step × 21-inventory grid. Optimal spreads δ*(q) are derived from the value function difference h(t,q±1) − h(t,q), validated against the closed-form approximation (max deviation < 0.0001). Interactive γ slider triggers live PDE recomputation via /api/hjb.

• C++ High-Performance Engine: Parallel C++ implementation of OFI, HJB solver, LOB parser, and Hawkes MLE using std::deque rolling windows and Catch2-verified at 1M snapshots/second. QuotingPolicy::get_quotes(t, q) is a pure array-lookup hot path — zero math at quote time.

• Live WebSocket Architecture: FastAPI backend streams 8KB state frames at 250ms intervals over WebSocket. Coinbase L2 feed parsed in a daemon thread; synthetic LOB fallback runs in parallel with automatic failover. Signal computation is O(1) per tick with no allocations in the hot path.

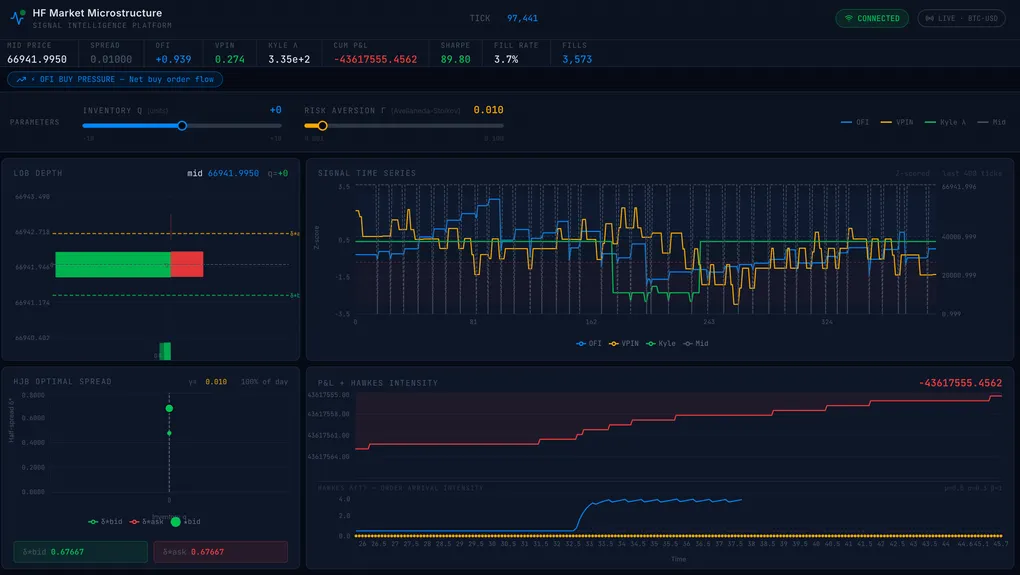

• React/TypeScript Dashboard: Custom SVG LOB depth chart (bid bars left, ask bars right, HJB quote overlays), dual-axis Recharts signal panel with Z-scored OFI/VPIN/Kyle λ, interactive HJB spread curves, and Hawkes intensity timeline with trade arrival events. Deployed on Vercel against a Railway-hosted FastAPI backend.

Signal Summary

Architecture

HJB Optimal Spread

δ*_total ≈ 2/k + γσ²(T−t)

γσ²(T−t) = inventory risk premium — extra spread for holding
            inventory risk to session end. Collapses to 2/k at T.

The interactive inventory slider (q ∈ [−10, +10]) and risk aversion slider (γ ∈ [0.001, 0.1]) trigger live PDE recomputation, showing how the optimal quoting policy shifts with inventory skew and risk preference.
